How to install or set up and configure a cctcv camera with dvr setup in home & office, you can connect it to internet for viewing online on mobile for remote view on phone anywhere. See this is the components' which is required for cctv camera installation, This device is called DVR, ie digital video recorder. This is the major component, which includes a hard drive for the storage of cctv footage, this is a camera which can be used for recording and capturing the videos. However there are different types of cameras like night vision camera, simple dome shaped camera, out door cameras, but the way of connecting the cameras are all most similar. Each camera consist of two cords like this among which one is used for power supply and another is used for data transferring, so lets begin the tutorial at home or office.
Cctv User Manual Pdf
This is four channel dvr of zicom in which we can connect a maximum of four cameras. This is video input for the dvr, first cam input, 2nd cam, 3rd cam & 4th camera. Hence we can provide here a maximum of four inputs in this cord. Whether that would be any kind of camera, either simple dome camera, night vision camera, outdoor camera etc. This cctv camera machine has two output formats one is vga output and other is av output, vga output can be given to a lcd monitor or crt monitor, while the av output can be previewed on tv screen. This is vga cable or connector which can be used for connecting the input and out put interface.
Cctv Installation Manual Pdf

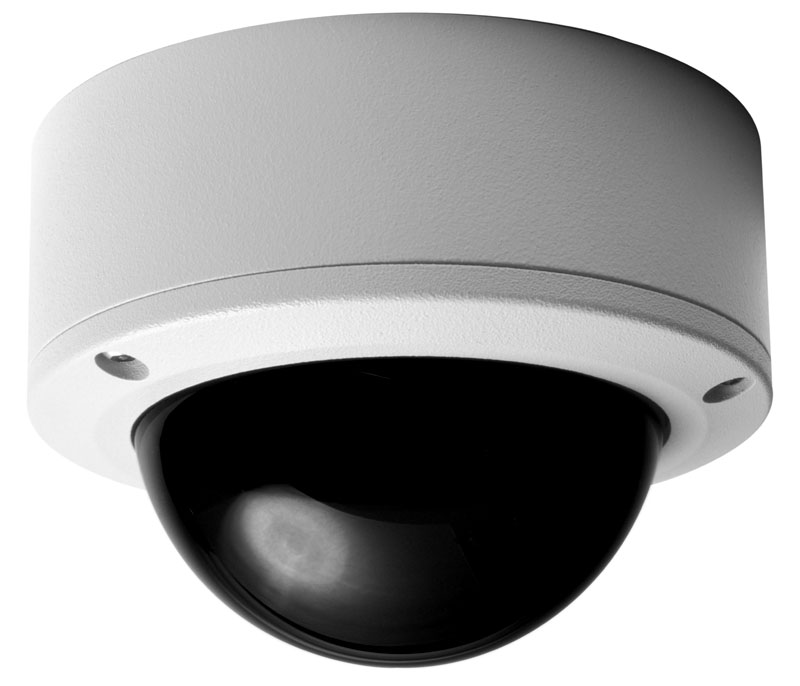

Analogue Cameras. CCTV cameras come in various types, styles, and configurations. A wide range of cameras are available to select from, depending on what will work best for the application. Some of the camera types based on the shape of the camera are Dome, Box, Bullet, PTZ Speed Dome Cam- eras. Your copy of the Axis technical guide to network video at www.axis.com/free_guide/. ALL THIS IS JUST ONE. This includes cameras that can be pan/tilt/zoom, vandal-proof, weath- er-resistant, or fixed-dome products. Each type of camera can be blended into an IP. Traditional analog CCTV systems.
A part from this dvr machine had a lan cable connectivity for accessing you cctv footage any where on network. The usb mouse port is there which can be used for setting and configuring the dvr system.
This is dvr power supply or power adapter which is used to supply the power to the digital video recorder.here you have to insert the jack.in order to save your video recording known as cctv footage, attach the hard disk in the dvr, so unscrew the dvr cover. In this place attach your hdd. Screw it tightly, and now plug in the sata data transfer cable is used and you also require a hdd power cable to power the hard drive. Insert them to appropriate places.close the lid of dvr. Now lets see some thing about cctv cameras. Doesn't matter which type of camera that is, dome shaped, night vision, or any.
